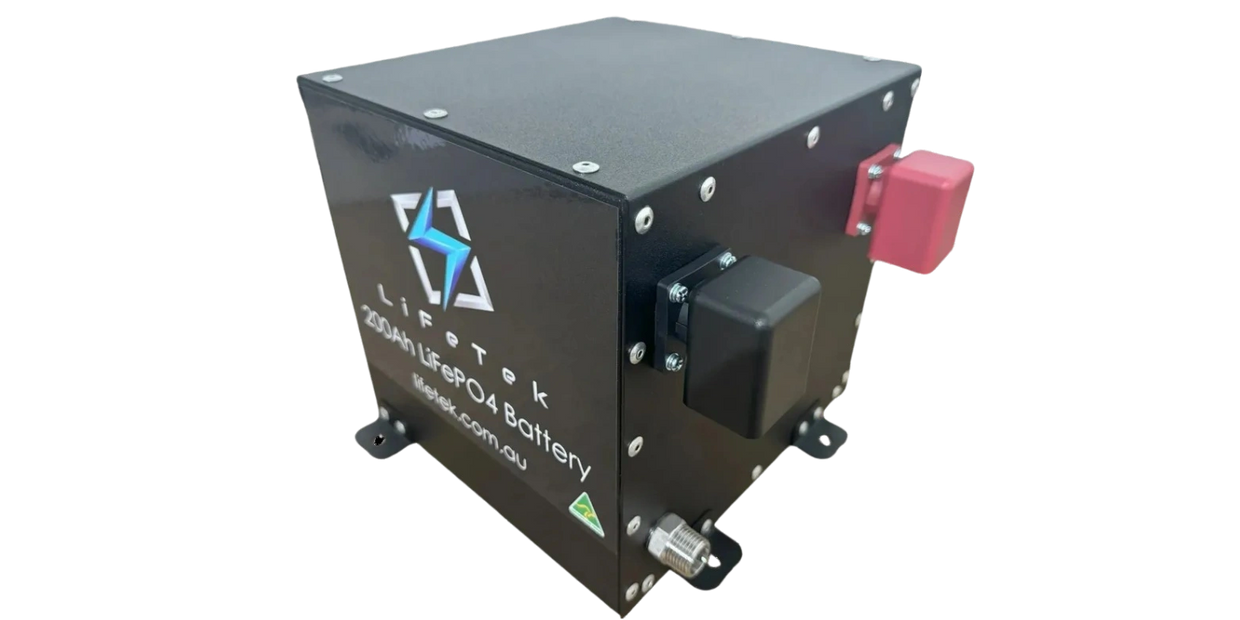

VanLiFe 200Ah

---

LiFePO4 12.8v Suitable for "12v" systems

BMS continuous discharge: 300A

BMS discharge over current protection: 320A for 10 seconds, reset 35 seconds

BMS charge over current protection: 205A for 10 seconds, reset 35 seconds

Low voltage discharge shut down: 10v restart 10.5v

High Voltage charge disconnect: 15v restart 14.8v

Low temp charge disconnect: 1c reset 2c

Low temp discharge disconnect -20c reset -15c

High temp charge disconnect: 55c reset 50c

High temp discharge disconnect: 60c reset 55c

Charging

Bulk Charge: 14.2V – 14.6V (ideal: 14.4V)

Absorption: 14.2V – 14.6V (ideal: 14.4V)

Float: 13.4V – 13.6V (ideal: 13.5V)

Terminal size: M10Vent outlet thread: 1/2 inch male BSP threadSealed back riveted case made from zinc plated and powder coated steel with high temp sealant

Weight 22.35kgs

The automotive-grade cells used in this model are designed to withstand   3000 cycles at 80% depth of discharge under heavy electric vehicle use.

For instance, cycling the battery daily—bringing it down to 20% state of charge and fully recharging it—would take approximately 8.2 years to complete 3000 cycles before the battery is regarded as end of life,  degrading to 80% of its original capacity while remaining operational for some time thereafter.

In less demanding applications such as caravan storage, you can expect longer cycle life.
