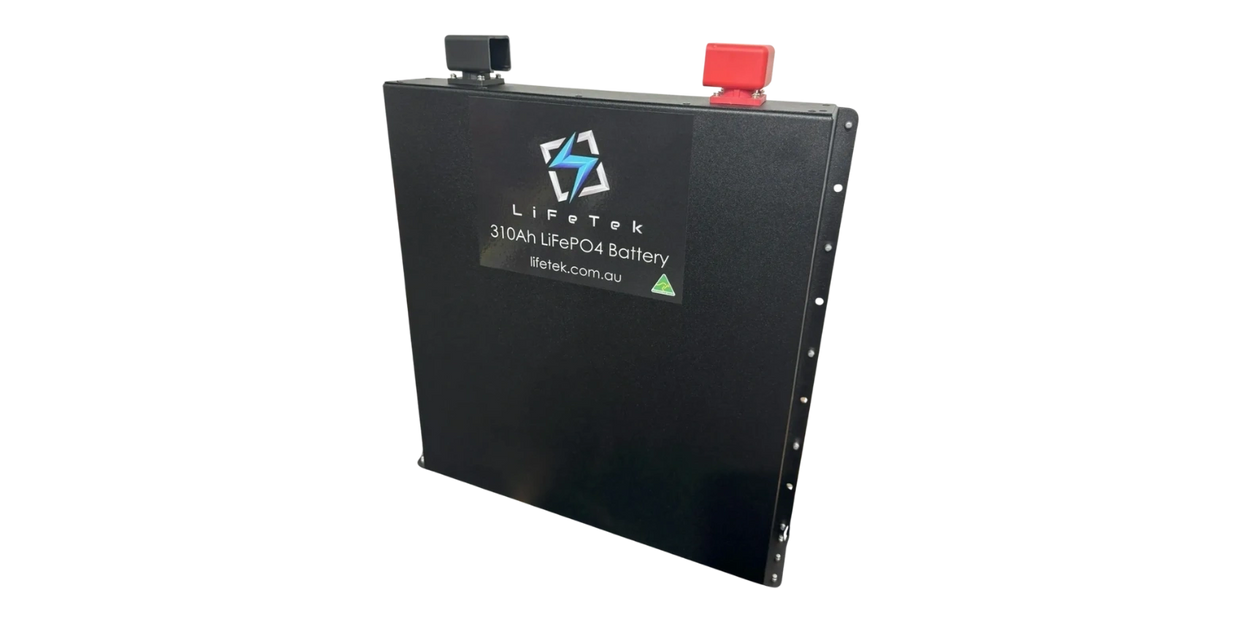

lifetek 310Ah ultra slim

---

LiFePO4 12.8v Suitable for "12v" systems

Features Active and Passive cell balancing

LiFePO4 12.8v Suitable for "12v" systems

BMS continuous discharge: 300A

BMS continuous charge: 300A

BMS discharge over current protection: 320A for 10 seconds, reset 35 seconds

BMS charge over current protection: 320A for 10 seconds, reset 35 seconds

Low voltage discharge shut down: 10v restart 10.5v

High Voltage charge disconnect: 15v restart 14.8v

Low temp charge disconnect: 1c reset 2c

Low temp discharge disconnect -20c reset -15c

High temp charge disconnect: 55c reset 50c

High temp discharge disconnect: 60c reset 55c

Charging

Bulk Charge: 14.2V – 14.6V (ideal: 14.4V)

Absorption: 14.2V – 14.6V (ideal: 14.4V)

Float: 13.4V – 13.6V (ideal: 13.5V)

Terminal size: M10

Vent outlet thread: 1/2 inch male BSP thread

Sealed back riveted case made from zinc plated and powder coated steel with high temp sealant

The Automotive grade cells used are rated 8000 cycles @ 70% DOD

Weight 30.8kgs
